ALcount is a 'reel to reel' label winding system, designed for counting and /or inspecting labels in an offline standalone process.
Reel to Reel Label Counting/Inspection System
Image Caption or Title here.

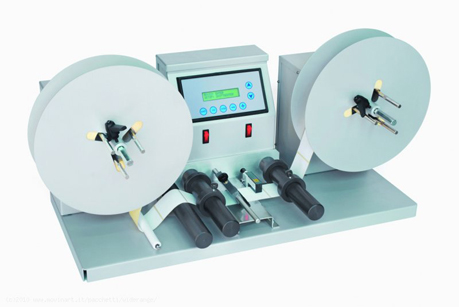

ALcount is a reel to reel unwind / rewind system for roll format labels with the facility to count a set quantity of labels and/or check for missing labels on the reel.
In more detail the unit can:
- Rewind labels clockwise or anti-clockwise and with different core diameters
- Can count labels up or down or to a pre set value
- Can check for label presence on the reel and stop if a label is missing
- Can be integrated with a smart vision sensor or vision camera to check text or pattern match
- Can be integrated with a barcode verifier to check for barcode readability
- Can be used as a simple label rewinder - to change the leading hand of the label (e.g. for customer applying wraparound labels)
ALcount in Detail

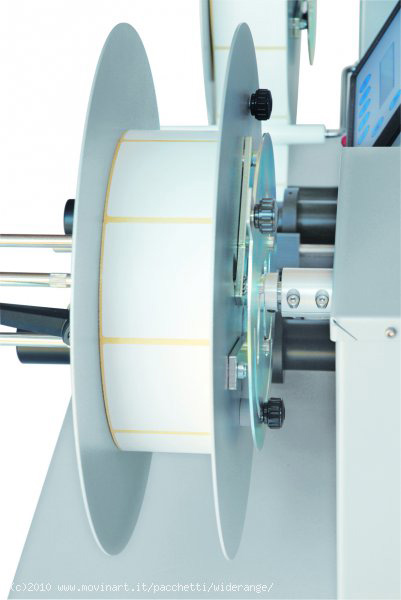

When working as a rewinder the unit can rewind reel format labels of a maximum 300 mm diameter, wound either face in or face out, with a core diameter ranging from 40 to 110 mm. The maximum rewinding speed is over 50 mt/min.

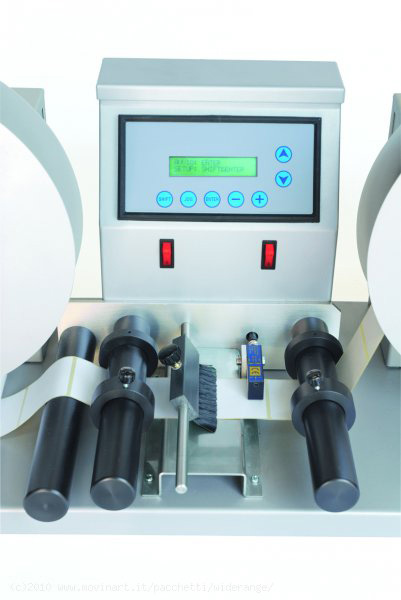

When working as a control device, a photocell will not only count the labels but also check their presence on the reel, with an audible signal and automatic stop function where a missing label is detected. An ultrasonic detector is available for processing transparent labels as well as smart vision sensors and/or barcode check scanners for printed label inspection.
Key Features
- Checking and/or counting of labels on the reel by photocell with auto stop and audio alarm on missing label detection
- Can be specified with a barcode scanner and/or vision smart sensors for printed label inspection large capacity 300mm reels
- Clockwise and anti-clockwise running
- Up to 50m/min rewinding speed
Technical Specifications
Max label width | 150mm |
Roll diameter | 300mm |
Power supply | 230 V ac – 50 Hz |
Dimensions | 850 x 350 x 380 (H) |
Speed | Variable depending on the rewinding diameter |
Spindle diameter | 40 to 110 mm |
Power consumption | 150 W |
Weight | 30 kg |
