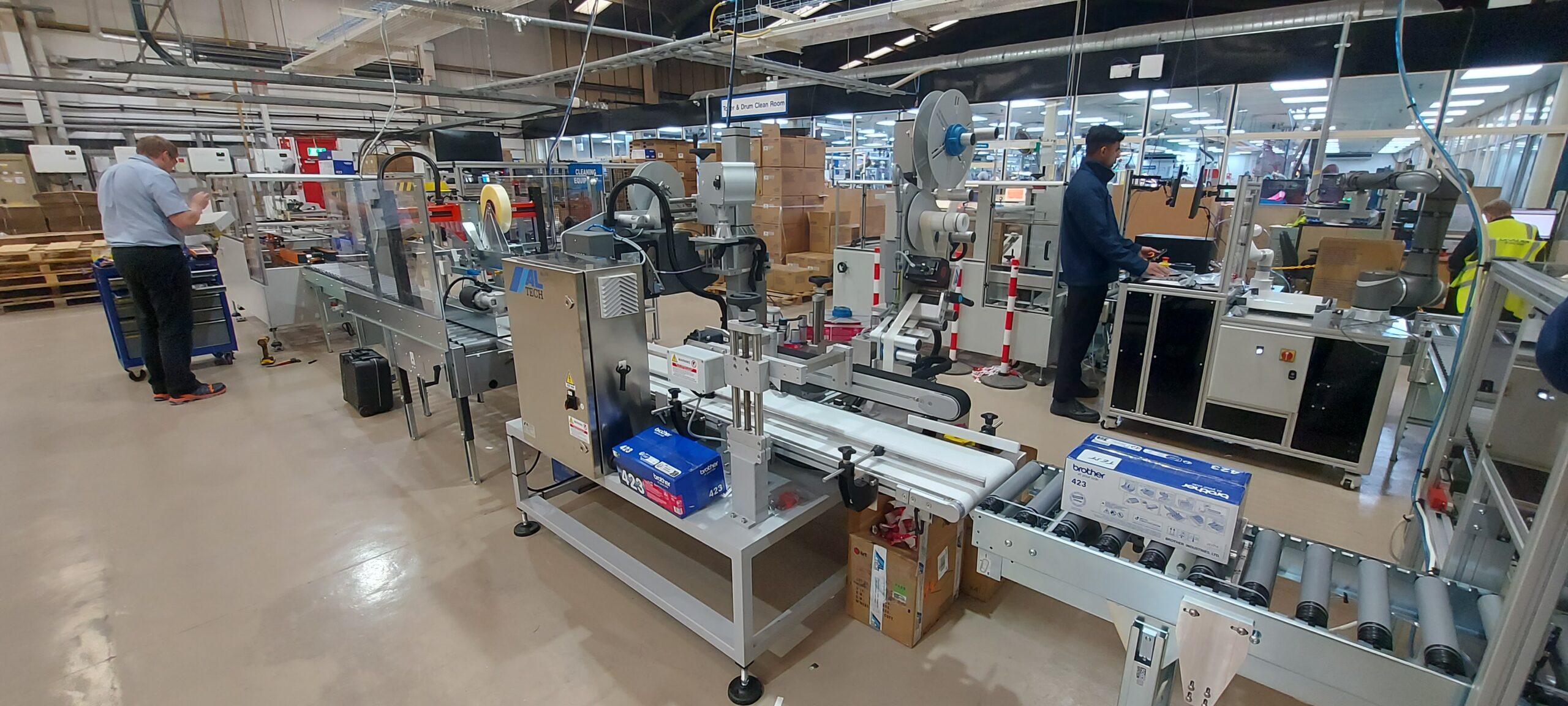

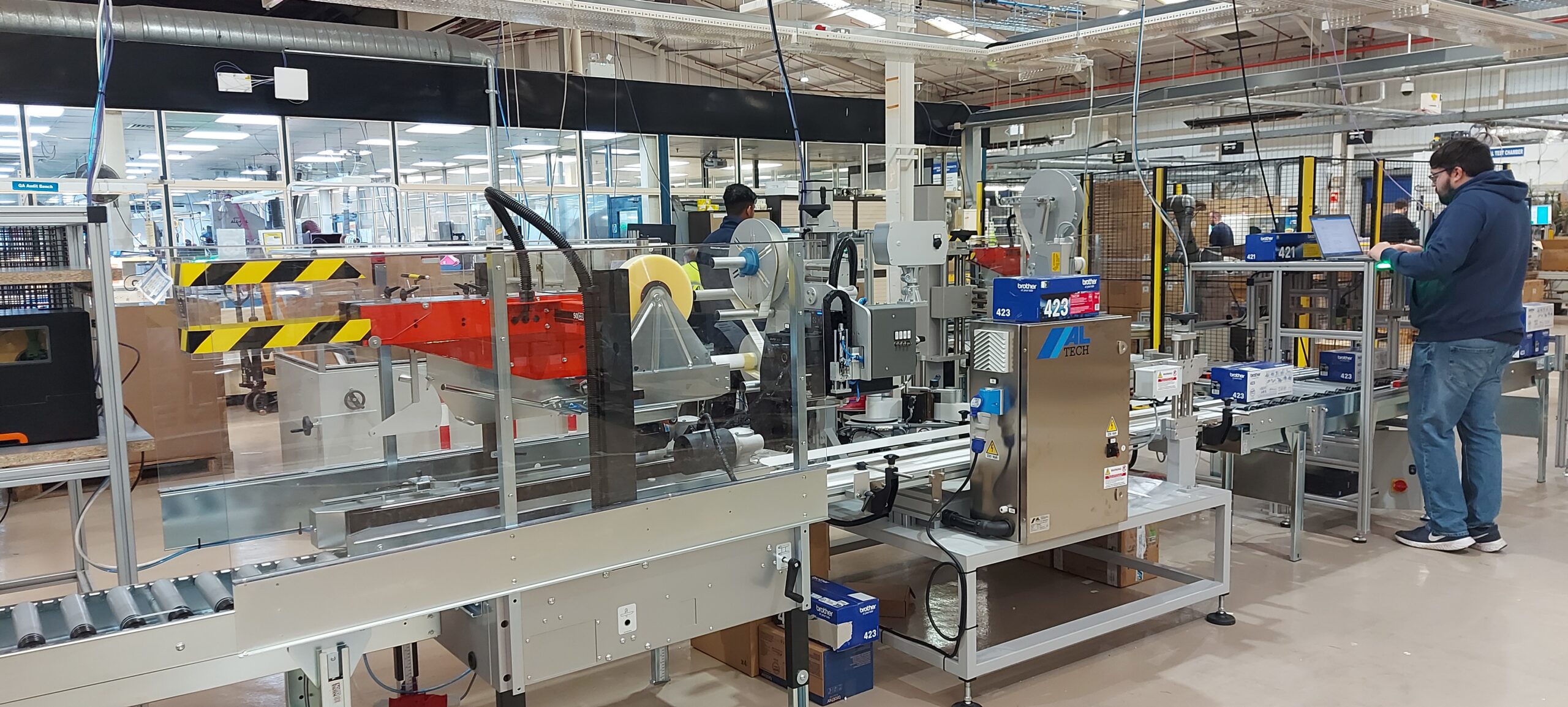

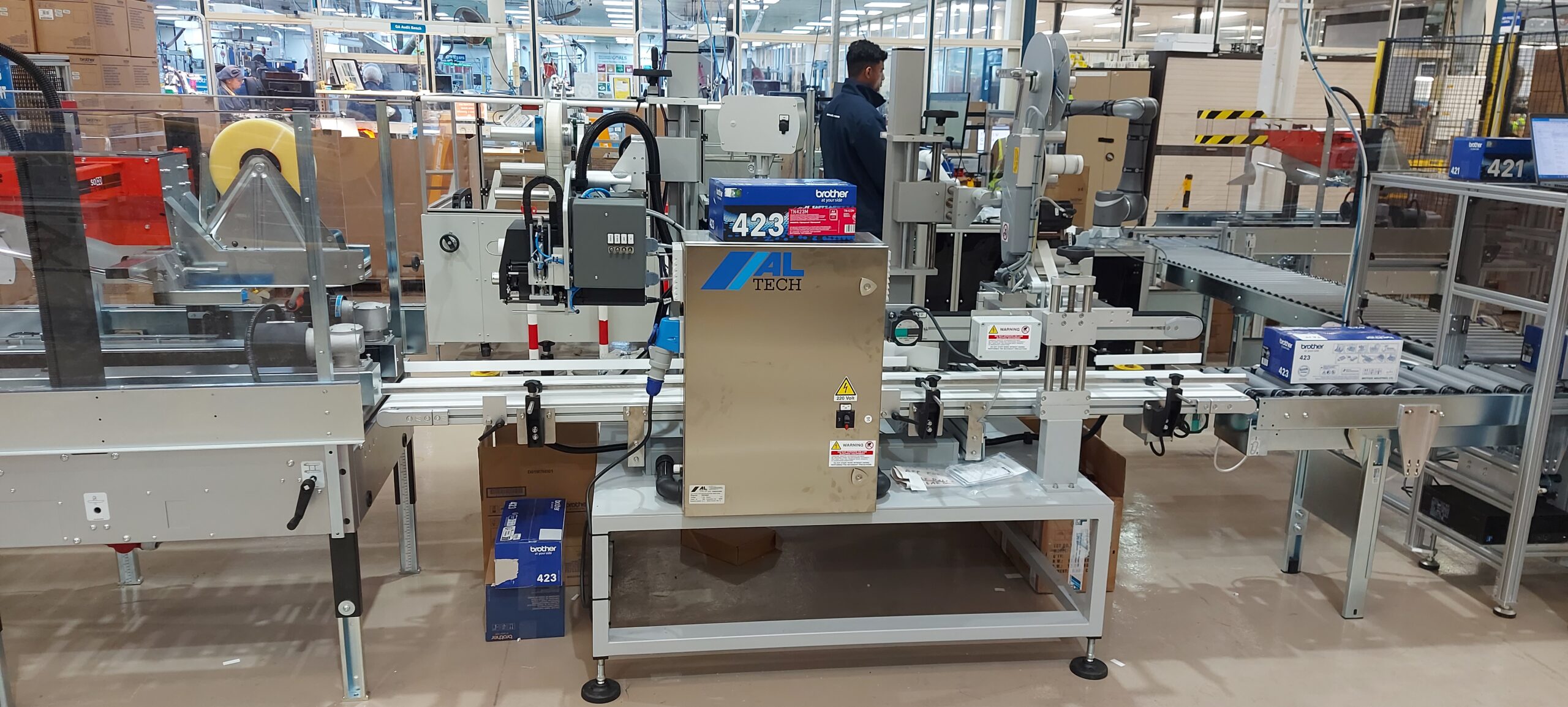

Just another simple case labellerโฆ ๐ฆ
โฆuntil you look at what it actually has to do, ๐ซ๐๐ฅ๐ข๐๐๐ฅ๐ฒ โ and keep doing it the same way for ๐ฒ๐๐๐ซ๐ฌ.
This project is a good example of how โsimpleโ can actually be quite complex. There isnโt a standard machine that should exist for this exact requirement โ the ๐ฅ๐๐ฒ๐จ๐ฎ๐ญ, ๐จ๐ซ๐ข๐๐ง๐ญ๐๐ญ๐ข๐จ๐ง, and overall ๐๐๐ฌ๐ข๐ ๐ง ๐ฅ๐จ๐ ๐ข๐ had to be engineered as a complete system so the machine remains repeatable, stable, and low-cost to run over the long term.
Quite simpleโฆ until you consider the need to label ๐๐จ๐ฎ๐ซ ๐๐ข๐๐๐๐ซ๐๐ง๐ญ ๐๐๐๐๐ฌ:
โข A ๐ฉ๐ซ๐ข๐ง๐ญ๐๐-๐๐ง๐-๐๐ฉ๐ฉ๐ฅ๐ข๐๐ ๐ฌ๐๐ซ๐ข๐๐ฅ ๐ฅ๐๐๐๐ฅ (unique to each case)
โข One ๐ฅ๐จ๐ง๐ ๐ฐ๐ซ๐๐ฉ๐๐ซ๐จ๐ฎ๐ง๐ ๐ฅ๐๐๐๐ฅ spanning ๐ญ๐ฐ๐จ ๐๐๐๐๐ฌ
โข A ๐ฏ๐๐ซ๐ฒ ๐ญ๐ก๐ข๐ง / ๐๐ฅ๐ข๐ฆ๐ฌ๐ฒ ๐ก๐จ๐ฅ๐จ๐ ๐ซ๐๐ฆ ๐ฅ๐๐๐๐ฅ, applied at ๐จ๐ง๐ ๐ง๐ข๐ง๐๐ญ๐ฒ ๐๐๐ ๐ซ๐๐๐ฌ to the box travel direction for consistent presentation
What makes this work isnโt a single โclever partโ โ itโs the way ๐ฉ๐ซ๐จ๐ฏ๐๐ง, ๐ฆ๐จ๐๐ฎ๐ฅ๐๐ซ ๐๐จ๐ฆ๐ฉ๐จ๐ง๐๐ง๐ญ๐ฌ have been configured around the application. The same core labelling technology is used, but the system architecture allows us to ๐๐ก๐๐ง๐ ๐ ๐ญ๐ก๐ ๐๐จ๐ซ๐ฆ๐๐ญ ๐จ๐ ๐ญ๐ก๐ ๐ฅ๐๐๐๐ฅ๐ฅ๐ข๐ง๐ ๐๐๐ฏ๐ข๐๐๐ฌ, apply the right ๐๐๐๐ฉ๐ญ๐ข๐จ๐ง ๐ฆ๐๐ญ๐ก๐จ๐ for each label, and mount modules in ๐๐ข๐๐๐๐ซ๐๐ง๐ญ ๐จ๐ซ๐ข๐๐ง๐ญ๐๐ญ๐ข๐จ๐ง๐ฌ to suit the pack and the process.
In practical terms, that means:
โข Selecting the right approach for each duty (rather than forcing everything into one method)
โข Designing the layout so each module has correct access, datum control, and product presentation
โข Building stability into the machine โ so performance isnโt dependent on constant operator adjustment
Itโs also a strong demonstration of the flexibility of our labelling heads. The same fundamental head model is used here in two completely different ways:
โข A traditional ๐ฉ๐๐๐ฅ๐๐ซ / ๐๐ข๐ซ๐๐๐ญ ๐๐ฉ๐ฉ๐ฅ๐ฒ concept
โข A secondary ๐ฉ๐ง๐๐ฎ๐ฆ๐๐ญ๐ข๐ ๐ญ๐๐ฆ๐ฉ-๐๐ฅ๐จ๐ฐ applicator
And because this machine doesnโt only handle one box or one label combination, it benefits from ๐๐๐ง๐ญ๐ซ๐๐ฅ ๐ฆ๐๐ง๐๐ ๐๐ฆ๐๐ง๐ญ ๐๐จ๐ง๐ญ๐ซ๐จ๐ฅ โ allowing set-up and recipe changeover from a ๐ฌ๐ข๐ง๐ ๐ฅ๐ ๐๐จ๐ง๐ญ๐ซ๐จ๐ฅ ๐ฉ๐จ๐ฌ๐ข๐ญ๐ข๐จ๐ง, rather than adjustments being scattered around the machine.
This is why choosing a ๐ฉ๐ซ๐จ๐ฏ๐๐ง, ๐ช๐ฎ๐๐ฅ๐ข๐ญ๐ฒ ๐ฅ๐๐๐๐ฅ๐ฅ๐ข๐ง๐ ๐ฌ๐จ๐ฅ๐ฎ๐ญ๐ข๐จ๐ง matters. The real return is delivered over years of operation: better consistency, fewer interventions, and extremely low running costs, beyond the modest investment in getting the engineering right.
